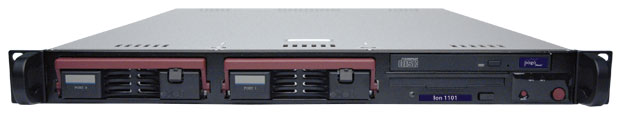

CHASSIS:
- Compact 1U Form Factor
PROCESSOR
* Supports Intel Core 2 Dual, and, Quad Core
CPU
* Supports Intel Xeon 3000 Series CPU
SYSTEM BUS
* 1066 / 800 / 533 MHz system bus
MEMORY CAPACITY
* Four 240-pin DIMM sockets
* Supports up to 8 GB of memory (Single / Dual Channel)
MEMORY TYPE
* DDR2 667MHz unbuffered, ECC / non-ECC SDRAM,
240-pin gold-plated DIMMs
DIMM SIZES
* 256 MB, 512 MB, 1 GB, 2GB
MEMORY VOLTAGE
* 1.8V only
CHIPSET
* Intel 3000 (Mukilteo-2) chipset
* ICH7R + PXH-V + Intel® 82573V + Intel® 82573L
Serial ATA
* Intel® ICH7R SATA controller built-in
* RAID 0, 1, 5, 10 support (Windows Only)
* RAID 0, 1, 10 support (Linux)
IPMI
* Support for Intelligent Platform Management Interface v.2.0
* (Optional: AOC-IPMI20-E)
NETWORK CONTROLLERS
* 1x Intel® 82573V Gigabit PCI-Express Ethernet
* 1x Intel® 82573L Gigabit PCI-Express Ethernet
* Supports 10Base-T, 100Base-TX, 1000BASE-T, RJ45 output
VGA
* On-board ATI ES1000 16MB graphics
SUPER I/O
* Winbond 83627EHG chip
CLOCK GENERATOR
* CK410
EXPANSION SLOTS
* 1x 64-bit PCI-X 133MHz Slot (via Riser Card) OR
* 1 (x8) PCI-Express Slot (via Riser Card) - Optional
IDE
* One EIDE channel supports up to two UDMA
IDE devices
* IDE Master / Slave 2 ports
* Supports UDMA Mode 5, PIO Mode 4, and ATA/100
* White Connector for Compact Flash (CF, 40-pin
IDE connector) card only
FLOPPY
* 1 Floppy controller; 1.44 MB
LAN
* 2x RJ45 LAN ports
USB
* Up to 6x USB 2.0 compliant / 1.1 compatible ports
* 4x Internal USB headers
* 2x Rear USB ports
|
VGA
* 1x VGA Port
KEYBOARD / MOUSE
* PS/2 keyboard and mouse ports
SERIAL PORTS
* 1x Fast UART 16550 serial port
* 1x Header
PARALLEL PORT
* 1x ECP / EEP Parallel Header
DIMENSIONS
Height * 1.7" (43mm)
Width * 16.8" (426mm)
Depth * 22.6" (574mm)
Gross Weight * 35 lbs (15.9kg)
FRONT PANEL FEATURES
* Power On/Off button
* System Reset button
* Power LED
* Hard drive activity LED
* 2x Network activity LEDs
* System Overheat / Fan Fail LED
HOT-SWAP DRIVE BAYS
* 2x 3.5"SATA Hot-swap drive bays
SYSTEM COOLING
* 3x 3-pin Counter-rotatign Cooling Fans
POWER SUPPLY
Fixed 300W AC power supply module with PFC
[ 24-pin, (4-pin=12V), 4-pin HDD ]
AC Voltage
* 100 - 240V, 60-50Hz, 5 Amp
DC Output * 5V + 3.3V ≤ 100W
+5V * 25 Amp
+5V standby * 2.0 Amp
+12V * 24.0 Amp (Max)
-12V * 1.0 Amp
+3.3V * 15.0 Amp
PC HEALTH MONITORING
* Monitors for CPU Cores (+1.8V, +3.3V, +5, ±12V, +3.3V/+5V Standby, VBAT)
* CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
* Adjustable CPU clock frequency ratio
FAN
* Fan Speed Control
* Total of six 4-pin fan headers
* 6x fans with tachometer monitoring
* Status monitor with firmware speed control
* Low noise fan speed control
* Status monitor for on/off control
* Support 3-pin fans (without speed control)
* Pulse Width Modulated (PWM) fan connector
TEMPERATURE
* Monitoring for CPU and chassis environment
* CPU thermal trip support
* Thermal Monitor (TM2) Support
LED
* CPU / System Overheat LED
* +5V Standby Alert LED
* Suspend-state indicator LED
OTHER FEATURES
* Chassis Intrusion Detection
* Chassis Intrusion Header
BIOS TYPE
* 8Mb Flash EEPROM with Phoenix BIOS®
BIOS FEATURES
* Plug and Play (PnP)
* DMI 2.3 support
* PCI 2.2
* ACPI 1.0
* USB Keyboard support
* SMBIOS 2.3
|
