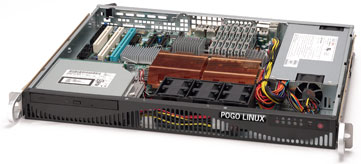

CHASSIS:
- 1U Form Factor
CPU
* Dual 771-pin LGA Sockets
* Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
o Quad-Core Intel®
Xeon®Processor 5300 sequence (Clovertown processor) up to 2.66 GHz
o Dual-Core Intel®
Xeon®Processor 5100/5000 sequence (Woodcrest/Dempsey processor) up to 3.73 GHz
SYSTEM BUS
* 1333 / 1066 / 667 MHz system bus
OPERATING SYSTEM SOFTWARE
* Supports 64-bit Operating Systems
* Supports 32-bit Operating Systems
MEMORY CAPACITY
* Six 240-pin DIMM sockets
* Supports up to 16 GB 667 / 533MHz DDR2 ECC FB-DIMM memory
* Dual branch memory bus
* Memory must be populated in pairs
* No Memory Mirroring support
MEMORY TYPE
* 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM SIZES
* 512 MB, 1GB, 2GB, 4GB
MEMORY VOLTAGE
* 1.8V only
* 1.5V(AMB)
ERROR DETECTION
* Corrects single-bit errors
* Detects double-bit errors (using ECC memory)
* Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
CHIPSET
* Intel® 5000V (Blackford VS) chipset
* MCH + ESB2
SATA
* Intel ESB2 SATA 3.0Gbps Controller
* RAID 0, 1, 5, 10 support (Windows Only)
IPMI
* Support for Intelligent Platform Management Interface v.2.0
* 200-pin IPMI slot (SIM1U)
* (Optional: AOC-SIMLC(+), AOC-SIM1U(+))
NETWORK CONTROLLERS
* Intel® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller
* Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
* Intel® I/OAT support for fast, scaleable, and reliable networking
GRAPHICS
* ATI ES1000 controller with 16 MB of video memory
SUPER I/O
* Winbond 83627HG chip
SERIAL ATA
* Six Serial ATA ports
* Six SATA hard drives supported
IDE
* Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S)
* Supports UDMA Mode 5, PIO Mode 4, and ATA/100
|
LAN
* 2x RJ45 LAN ports
USB
* 2x USB rear ports
* 2x USB internal headers
* Total 6 USB 2.0 Compliant / 1.1 Compliant
VGA
* 1x VGA Port
KEYBOARD / MOUSE
* PS/2 keyboard and mouse ports
SERIAL PORT / HEADER
* 1 Fast UART 16550 serial port
* 1 Fast UART 16550 serial header
DIMENSIONS
Height * 1.7" (43mm)
Width * 17.2" (437mm)
Depth * 14.5" (369mm)
Gross Weight * 20 lbs (9.1kg)
FRONT PANEL FEATURES
* Power On/Off button
* Power LED
* Hard drive activity LED
* 2x Network activity LEDs
* System Overheat LED
* 2x USB Ports (2.0 Ready)
PCI-X EXPANSION SLOT
* 1x 64-bit 133/100MHz PCI-X (3.3V) slots
INTERNAL DRIVE BAY
* 1x 3.5" internal drive bay
OPTICAL DRIVE
* Slim 8x DVD / 24x CD-ROM Drive
SYSTEM COOLING
* 3x 4cm 3-pin Nidec Counter-rotating Fans
POWER SUPPLY
520W AC to DC power supply w/ PFC
AC VOLTAGE
* 100 - 240V, 50 - 60Hz, 7 - 3Amp
+5V * 20 Amp
+5V standby * 3 Amp
+12V * 39 Amp
-12V * 0.5 Amp
+3.3V * 16 Amp
BIOS TYPE
* 8Mb Flash EEPROM with Phoenix® BIOS
BIOS FEATURES
* Plug and Play (PnP)
* SMBIOS 2.3
* DMI 2.1
* PCI 2.2
* ACPI 1.0
* USB Keyboard support
* Hardware BIOS Virus protection
OPERATING TEMPERATURE RANGE
* 10 - 35°C (50° to 95° F)
NON-OPERATING TEMPERATURE RANGE
* -40 - +70°C (-40° to 158° F)
HUMIDITY RANGE
* 8 - 90% non-condensing
NON_OPERATING HUMIDITY RANGE
* 5 - 95% non-condensing
|
