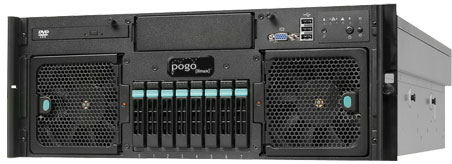

PROCESSORS SUPPORTED
Up to four Quad-Core Intel® Xeon® processors 7300 series or Dual-Core Intel Xeon
processors 7200 series
SYSTEM MEMORY
-Capacity
Support for up to 256 GB with up to 32 DIMM sockets
-Type
Registered ECC Fully Buffered DDR2 533/667 SDRAM 72-
bit, 240-pin gold-plated DIMMs
-DIMM Sizes
512 MB, 1 GB, 2 GB, 4 GB, 8 GB
-Memory Voltage
1.8 volt only
-Reliability Features
ECC memory support to correct single-bit errors and
detect
multiple-bit errors; supports memory sparing and
mirroring
INTEGRATED ONBOARD/OPTIONAL MODULES
-Chipset
Intel® 7300 Chipset
-Network Connections
Quad Gigabit Ethernet* connections and support for Remote Management Module 2 (included in SFC4URE)
Dual Gigabit Ethernet connections (SFC4UR)
-Graphics
ATI ES1000* PCI graphics controller, 1600x1200 Maximum
resolution
-Trusted Platform
Module (TPM)
Trusted Computing GroupTM TPM Specification 1.2 compliant
-SAS Controller (Riser) Intel® Integrated RAID Module
(AFCSASRISER)
-RMM2 (Riser + Module)
RMM2 KVM and Media connectivity One 10/100 MB
RJ-45
INPUT/OUTPUT
-PCI
Seven total PCI Express* slots:
Four x8 (two slots hot-plug)
Three x4
-USB
Five USB 2.0-compatible connectors (two rear, three front
access)
-Serial Ports
One rear DB9 9-pin connector
-Video Port
One rear and one front standard VGA-compatible 15-pin
connector
-LAN Port
Dual Gigabit Ethernet connections (Quad Included in
SFC4URE)
DIMENSIONS
-Form Factor: Rack
-Height: 4U, 6.8 inches (173 mm)
-Width: 17.6 inches (447 mm)
-Depth: 27.8 inches (706 mm)
-Weight: (maximum configuration) 90 pounds (40 kg)
STORAGE AND COOLING
-SAS/SATA Channels
Six SATA
-Supported Hard Drives Up to four hot-swap SATA
hard disk drives, 2.5” wide,
7.2 K RPM
-Additional Drive Bays
Two total: one half-height
5.25-inch empty, one DVD-
ROM/CD-ROM
-System Cooling Front
Two fan module
configuration for cooling
all system
components
-System Cooling Rear
Two fan configuration
for cooling all system
components
FRONT PANEL BUTTONS
-Reset: Resets system
-NMI: Initiates a non-maskable interrupt
-Power: Toggles system power
-Chassis ID
Activates the blue chassis ID LED on both the front control
panel and the baseboard at the rear panel of the chassis
|
LEDs
-Chassis (blue)
Turn on using the front control panel or Intel® Server
Management; the chassis ID LED is visible from the front
and rear of the chassis to ease identification when
servicing the system in a rack
-Power (green)
LED goes out when power is turned off or the power
source
is disrupted; a flashing power LED indicates the
system is in
advanced configuration and power interface
(ACPI) sleep mode.
-HDD (green)
Indicates system hard-drive activity
-LAN 1 (green)
Indicates 10/100/1000 MB Ethernet port activity
-LAN 2 (green)
Indicates 10/100/1000 MB Ethernet port activity
-System Fault (yellow)
Indicates a system-fault condition
SERVER MANAGEMENT
-Integrated Management Type
Onboard platform instrumentation
-Software Support
Intel® System Management Software 2.0
Microsoft System Center Essentials (SCE) 2007*
Intel® Deployment Assistant v1.4
-Remote Management
Intel® Remote Management Module 2
-System Monitoring
and Auto-Recovery
System health indicators and corrective actions including
automated power cycling, OS watchdog
timer, and fault-
resilient booting
-Server Troubleshooting
Intel® Light-Guided Diagnostics, continuous health
monitoring, text console redirection, and error logs
-Intelligent Platform Management
Pogo Remote Intelligent Platform Management Interface
(IPMI) 2.0
ENVIRONMENTAL
-Ambient Temperature
Operating (system): 10° C to 35° C; non-operating/storage
(system): –40° C to 70° C
-Relative Humidity
Non-operating: 95%, non-condensing at 25° C to 30° C -Acoustics
Sound pressure:
< 55dBA at ambient temperatures
<
23° C measured at bystander positions
operating mode;
sound power: < 7.0dBA at ambient temperatures < 23° C
measured using Dome Method in operating mode
-Electrostatic Discharge
Tested up to 15 kV air discharge and up to 8 kV contact
discharge without physical damage per Intel test
specification
|
