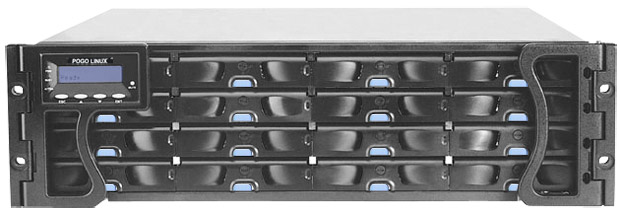

CHASSIS:
- Standard 3U Form Factor
RAID CONTROLLER
* Hardware RAID parity computing
* Supports RAID 0, 1 (0+1), 3, 5, 6, 10, 30, 50, 60, and NRAID
* RAID Migration
* Configurable stripe size and write policy per array
* Multiple Global, Dedicated, & Enclosure-specific hot-spares
* Intelligent Drive Handling:
- In degraded mode: skips irreparable blocks to continue rebuild
- In normal operation: data-block verification and repair
HOST INTERFACE
* Eight (8) FC-4G host port w/HUB functions
* Concurrent I/O commands
* Tagged command queuing up to 256
* Adaptive cache write policies
DRIVE INTERFACE
* Sixteen (16) 3.0Gbps SATA-II (3Gbps) , hot-swappable drive trays
* Accommodates 1-inch pitch, 3.5-inch SATA-II (3Gbps) disk drives
* S.M.A.R.T. and NCQ support· Automatic bad-sector reassignment
* Dedicated bandwidth to each connected drive
SYSTEM COMPONENTS
* Heavy duty 3U enclosure
* Dual-redundant RAID controller modules
* One (1) 512MB DDR RAM DIMM module (default, supports up to 2GB in size) on each controller
* Two (2), hot-swappable, redundant, 530W power supply units
* Two (2), redundant, dual-speed cooling modules
* Sixteen (16), hot-swappable drive trays
* Two (2) forearm handles
* LCD keypad panel
* Li-Ion, life expectancy & charge level aware battery backup unit (BBU)
|
MANAGEMENT
* COM1 serial port for local access to firmware-embedded utility
* COM2 for UPS connection
* GUI, Telnet, and SSH system monitoring via Ethernet
* Browser-based or Java-based RAIDWatch manager software
* Firmware-embedded manager via RS-232C (audio jack) that is platform independent
* Widest range of event notification methods including email, LAN broadcast, fax, SNMP traps, SMS, and MSN
* LCD keypad panel to all configuration options
* Variable logical drive options per DIMM size
* Module status LED indicators:
- Two (2) per drive tray
- Seven (7) per controller module
- One (1) per power supply unit
- One (1) per BBU module
- Two (2) per cooling module
* Module failure alert through I 2 C bus
INTERFACES
* One (1) Fast Ethernet management port
* Two (2) serial COM port (38400, n, 8, 1)
Power Supply Module Two (2) redundant hot-swappable power supplies with PFC
- Input 100~240VAC with 530W PFC (auto-switching)
47 to 63Hz
- Output (Maximum output: 530 Watts)
+12.0V 30A max.
+ 5.0V 32A max.
+ 3.3V 32A max.
COOLING MODULE
Two (2) redundant dual-fan cooling modules
Maximum air flow: High speed: 90 CFM
Low speed: 70 CFM
ENVIRONMENTAL SPECIFICATIONS
Operating temperature: 0º to 40ºC (35ºC w/ battery)
Non-operating temperature: - 40º to 60ºC
Relative humidity: 5 to 95%, non-condensing
Altitude: Operating: sea level to 12,000 ft
Non-operating: sea level to 40,000 ft
DIMENSIONS
* Chassis without handles: 445(W) x 130(H) x 488.2(D) mm (17.5 x 5.1 x 19.2 inches)
* Chassis with handles: 482.6(W) x 131(H) x 504.3(D) mm (19 x 5.2 x 19.9 inches)
* Package: 423(H) x 567(W) x 772(D) mm (16.7 x 22.3 x 30.4 inches)
SYSTEM WEIGHT
* Net weight: 28kg
* Gross weight: 31kg (without drives) |
