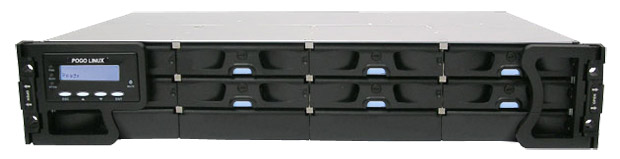

CHASSIS:
- Standard 2U Form Factor
RAID
* Multiple arrays configurable with dedicated or global hot spares
* RAID levels supported: RAID 0, 1 (0+1), 3, 5, 10, 30, 50, and NRAID
* Online expansion by:
- Adding new drives
- Copying and replacing drives with drives of larger capacity
* Automatic background rebuildsConfigurable stripe size and write policy per arrayIntelligent drive handling:
- In degraded mode: skips irreparable blocks to continue rebuild
- In normal operation: data-block verification and repair
HOST INTERFACE
* Two (2) FC-4G through two (2) SFP host ports
* Concurrent I/O commands
* Tagged command queuing up to 256
* Variable stripe size per logical drive
* Optimization setting for random or sequential I/Os
DRIVE INTERFACE
* Twelve (12) or eight (8) 3Gbps SATA-II (3Gbps) , hot-swappable drive trays that accommodate 1-inch pitch, 3.5-inch SATA-I or SATA-II (3Gbps) disk drives
* Automatic bad-sector reassignment
* Dedicated bandwidth to each connected drive
SYSTEM COMPONENTS
* Single controller configuration provides full RAID functionalities
- One (1) EonStor enhanced 2U enclosure
- One (1) RAID controller module
- One (1) 256MB DDR RAM DIMM module (pre-installed on the controller module)
- Two (2), hot-swappable, redundant, 350W power supply units
- Three (A12F) or Two (A08F), hot-swappable, redundant, single-fan cooling modules running in high/low speeds
- Twelve (12) or eight (8), hot-swappable drive trays
- Two (2) front handles
- Optional battery backup unit
MANAGEMENT
Front LCD control panel for setup and configuration10/100 BaseT Ethernet for out-of-band managementOne (1) RS-232C serial port for local access to firmware-embedded utility Firmware-embedded Java-based RAIDWatch® GUI manager:
* VT-100 terminal emulation via RS-232C
* Telnet access via onboard Ethernet port
* Cross-platform, remote administration with SSL
* Out-of-band access via Ethernet
* Centralized management to monitor and administer multiple RAID units on one screen
Configuration client for real-time event notification over Email, Fax, LAN broadcast, SNMP Traps, MSN messenger,SMS short messages, and the configuration utility screen
SNMP AGENT SUPPORT
* SNMP trap event notification with plain-text event message (no MIB file required)
* SNMP V2.0 MIB file support with get-and-set commands
INDICATORS
Onboard alarm is triggered when one of the following modules fails:
* RAID controller module
* Cooling module
* Power supply unit
* Hard drive
* BBU module
|
MODULE STATUS LED INDICATORS
* Two (2) per drive tray
* One (1) per cooling module
* One (1) per power supply unit
* One (1) per BBU module
* Three (3) per LCD panel
* Five (5) per RAID controller module
* Two (2) per Ethernet port
Module failure alert through I2C bus
INTELLIGENT DRIVE HANDLING
If two bad blocks occur on two member drives of an array, the integrity of the stored data is endangered. Media Scan, Infortrend's innovative intelligent drive handling function, retrieves data from the damaged sectors. Media Scan handles low quality drives in both the degraded mode and during the rebuild process. For additional data security, other intelligent drive management features include the transparent resetting of hung hard drives, power-failure management, and bad-drive handling during LD expansion.
TASK SCHEDULER
The Task Scheduler is combined with Media Scan so that the scanning operation can be scheduled beginning at a specified start time and repeating at the configurable intervals. The operation is thus hands free. Each such schedule can be defined to operate on individual hard drives, all drives of a certain class, all member drives of a specified logical drive, or all member drives of all logical drives.
INTERFACES
* Two (2) SFP ports for host connections
* One (1) COM port (38400, n, 8, 1)
* One (1) 10/100BaseT Ethernet port
POWER SUPPLY MODULE
Two (2) redundant hot-swappable power supplies with PFC
Input: 100VAC at 6A, 240VAC at 3A with PFC (auto-switching)
47 ~ 63Hz
Output: (Maximum output: 350 Watts)
+12.0V 25A max.
+ 5.0V 25A max.
+ 3.3V 20A max.
COOLING MODULE
Three (A12F) or two (A08F) redundant single-fan cooling modules
Maximum air flow (each module)
-
High speed: 31.8 CFM
- Low speed: 20.1 CFM
ENVIRONMENTAL SPECIFICATIONS
Operating temperature 0° to 40°C
Non-operating temperature - 40º to 60ºC
Relative humidity 5 ~ 95%, non-condensing
Operating altitude Operating: 0 ~ 12,000 ft
Non-operating: 0 to 40,000 ft
DIMENSIONS
* Chassis without handles: 446(W) x 88(H) x 490(D) mm
* Chassis with handles: 482 (W) x 88(H) x 505(D) mm
* Package: 381H x567W x 772D mm
SYSTEM WEIGHT
* Net weight: 23.5kg
* Gross weight: 25kg
|
