PROCESSORS
Supports 4way Dual-Core socket F(1207pin) AMD Opteron™ Processors
Integrated 128-bit registered DDR2 memory controller
CHIPSET
AMD 8132 PCI-X Tunnel chipset
NVIDIA nForce4 Professional 2200
NVIDIA nForce4 Professional 2050
ADM 1026 hardware monitoring IC
MEMORY
128-bit dual channel memory bus
Supports 32 DIMM sockets (8 DIMM sockets per CPU)
Registered ECC/REG DDR2 400/533/667/800 SDRAM
Up to 128GB memory capacity
DISK CONTROLLER
Integrated single-channel ATA 133/100/66: nForce4 Professional 2200
Integrated six SATA 3.0Gbs ports with NVRAID: nForce4 Professional 2200 & 2050
On-board LSI 1068 PCI-X SAS controller
- supports 6 internal SAS or 4 internal/4 external SAS configurations
- supports integrated mirroring/stripping and ZCR function
DRIVE BAYS
Supports slim CD-ROM(or DVD-Combo) and slim FDD
Supports six hot-swap SATA HDDs or SAS HDDs (optional)
GRAPHICS
XGI Volari Z9 VGA chip, 16MB memory size
NETWORK INTERFACE
Dual Broadcom 5721 PCI-Express X1 Gigabit controllers
- support PXE function
|
REAR INPUT/OUTPUT
One VGA port, One serial port, One PS/2 connectors,
Two RJ45 Gigabit ports, Two USB2.0 connectors, ID LED, Two Dip switches
One 10/100 port dedicated for KVM-over-IP, One IEEE 1394a(FireWire) port,
One SFF8474 external SAS connector(SAS model only)

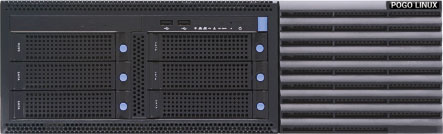

FRONT PANEL
LED: Power, LAN1, LAN2, System Fail, System ID
Switch: Reset, Power, System ID
Two USB 2.0 connectors
PCI EXPANSION SLOTS
Two full length PCI-Express x16 slots
One half length PCI-Express x4 slot
Two half length PCI-X 64-bit 133/100/66 MHz
One full length PCI-X 64-bit 133/100/66 MHz
POWER SUPPLY
110~220VAC, auto-sensing, 1000W(2N+1) hot-swap redundant P/S with PFC
COOLING
Hot-plug two center Fans & two rear Fans
Supports variable speed control
DIMENSIONS (HxWxD)
131 x 430.0 x 698 mm ( 5.2 x 16.9 x 27.5 inch)
TEMPERATURE
Operating: 10°C to 35°C, Storage: 70°C max
REMOTE SERVER MANAGEMENT
Integrated server management (IPMI 2.0 on-board)
ServerDome (Optional)
• In-band and Out-of-band remote management
• Power On/Off and reset function
• Platform Monitoring: Fan fail, Over-temperature and Voltage
• E-mail failure notification
KVM-over-IP (Optional)
|
