Ion Series Intel Linux Servers

Ion 1100 Linux Server - Specifications

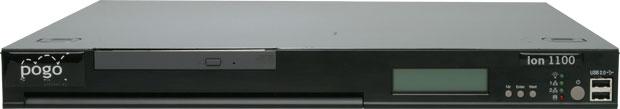

Ion 1100 Server

CHASSIS:
- Compact 1U Form Factor

POWER SUPPLY:
- 300 Watts

FANS:
- One Low-Noise Blower Fan
- Power Supply Fan

CHIPSET:
- Intel Mukilteo2
- 1066MHz Front Side Bus

MEMORY:
- 8GB DDR2 UBF ECC RoHS Memory
- 4x DDR2 DIMM Sockets
- Supports DDR2 667Memory

PROCESSOR:
- Supports Intel Core 2 Duo, Core 2 Quad, or Xeon 3000

I/O PORTS:
- One Serial Port, One Parallel Port
- Two PS/2 Connectors (Keyboard and Mouse)
- Four USB 2.0 Ports (2 Front , 2 Rear)

EXPANSION CAPABILITIES:
- One PCI Express x8 Slot

DRIVE BAYS:
- Two Internal Hard Drive Bays
- One Slim 25x CD-ROM Drive Bay

HARD DISKS:
- Confi gure up to Two SATA hard drives
- 250GB 7200RPM SATA (16MB Cache) Hard Drive
- 500GB 7200RPM SATA (16MB Cache) Hard Drive
- 750GB 7200RPM SATA (16MB Cache) Hard Drive
- 1TB 7200RPM SATA (32MB Cache) Hard Drive

VIDEO:
- ICH7R - XGI Z7 Integrated Graphics

NETWORK:
- Dual Onboard Intel 10/100/1000 Gigabit Adapter

LINUX SUPPORT:
- Red Hat Enterprise Linux v.5
- CentOS 5
- SuSE 10.3
- Ubuntu 7.10

DIMENSIONS:
- Height: 1.7”
- Width: 17”
- Depth: 18”

WEIGHT:
- 25 lbs (Default Confi guration)

INCLUDED SOFTWARE AND DOCUMENTATION:
- Linux CD Set
- Getting Started Guide
