StorageDirector Operating System
File Sharing:
The StorageDirector supports Windows (SMB/CIFS), Apple (Apple Talk),
Unix/Linux (NFS), HTTP, and FTP file sharing protocols for true interoperability.
Multiple Snapshots:
The StorageDirector snapshot features captures data from a single point-intime with the
capability to aggregate multiple snapshots in sequence which can be used for backup or data
retrieval purposes.
Remote Mirroring:
With Remote Mirroring, The StorageDirector allows block device replication of logical volumes.
The allows network fallover between two systems, where two volumes are mirrored to provide
some of the best redundancy possible.
System Monitoring & Alerts
The Advanced monitoring systems notifies network administrators on health disk status,
system temperature, RAID status, and spare drives on their systems. The StorageDirector
also generates logs that record monitoring activity on a timely basis.
UPnP/WSDL Server:
The StorageDirector uses Simple Object Access Control (SOAP) to leverage standard
management formats (XML) and protocols (HTTPS) to configure multiple servers.
LDAP Client:
The StorageDirector permits user and group authentication to an LDAP server for all network
services and even the webbased administration. This allows other StorageDirector servers
to coexist in an existing LDAP management scheme.
IP Failover:
With IP failover, two StorageDirector servers can share the same virtual IP address over the
network. If one server goes offline, then the other server can pick network activity without
causing interruption.
Access Control List:
The Access Control List (ACL) allows administration to restrict user rights and access policies
through the network. The ACL feature is convenient for file share administration and remote
network management.
Hardware and Software RAID:
The StorageDirector offers integrated support that is optimized to work with AMCC 3ware and
Areca RAID controllers as well as driver support for most other hardware RAID controllers that
support SATA, SAS, SCSI, and Fibre HDD’s. In addition our StorageDirector OS provides
Software RAID 1, 10, 5 & 6.
iSCSI (Initiator & Target):
The StorageDirector has the ability to transport data across networks using the iSCSI
protocol. The StorageDirector iSCSI software OS can act as an initiator and a target on the
same hardware platform at the same time. This unique feature allows the StorageDirector
target and multi-path initiator clients to mirror data between servers and remotely replicate
mission critical information for backup procedures.

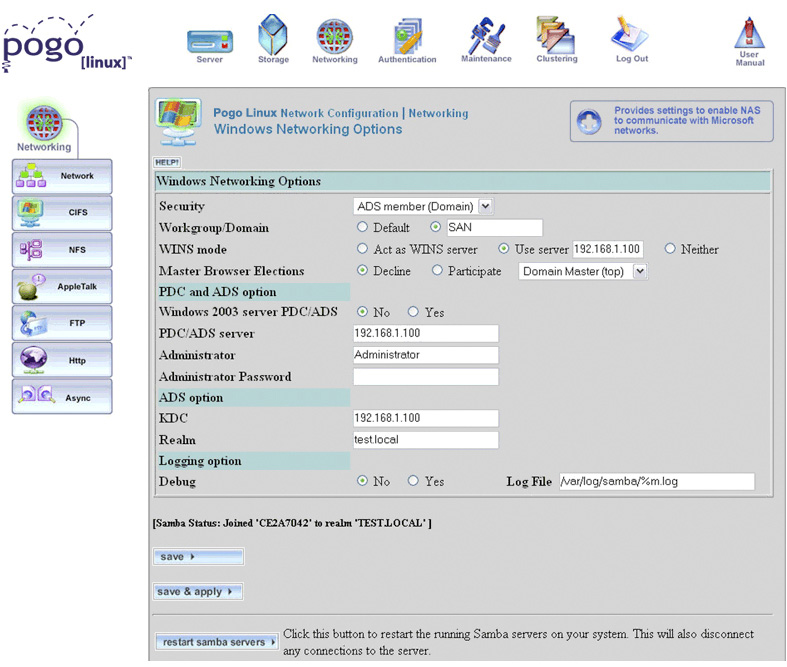

Screenshot: Windows networking options (Click to view full size [new window]):
|

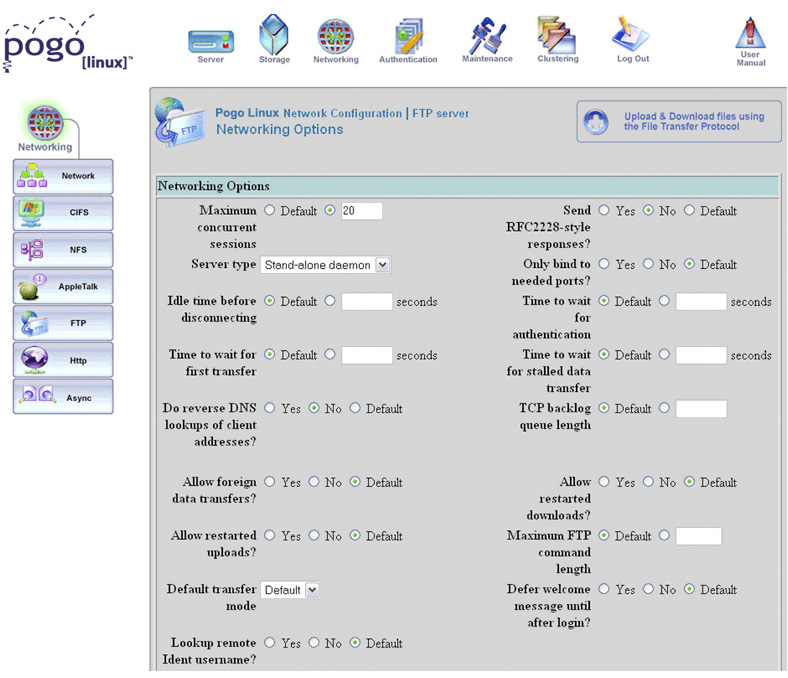

Screenshot: Pogo network configuration FTP Server (Click to view full size [new window]):
Error Recovery Level 1 & 2:
The StorageDirector Error Recovery Level 1 (ER1) monitor information packets that are
sent over the network from the iSCSI initiator to the iSCSI target. Error Level Recovery
1 also supervises network communication and recovers lost data during transmissions the
StorageDirector Error Recovery Level 2 (ER2) is used when there are multiple network
connections. Error Recovery Level 2 inspects the vitality of the network connection and if a
connection goes offline, then the StorageDirector OS searches for an operational connection
and redirects all network traffic.
Remote Replication:
With The StorageDirector’s Remote Replication feature, organizations can improve their
business continuation model by backing up directly to disk. This shortens their backup time
and can retrieve archived information in a matter of minutes. This allows both public and
private organizations that comply with federal regulations to eliminate the traditional form of
backup; transferring data into tape, which is time consuming, generates multiple tape copies,
and often leaves sensitive information exposed.
Updates & Security:
The StorageDirector can be updated with signed Red Hat Packages (RPMs) though an USB
disk-on-key or USB CD-ROM. In addition, system administrators can turn off network updates
and remove unused components if required. The StorageDirector requires authentication
protocols through an encrypted channel (HTTPS) and provides protection against security
breaks by verifying the change and signature of the system software. The system software
signature can be stored as a read-only media file after being downloaded. This is done to
keep data secured and restricted from unauthorized users.
Multiple Root Control Services:
The StorageDirector offers Root Control Service (RCS) to the operating system. With RCS,
the administrator can add or remove modules, restrict IP access control, and creates NIS
domain users, local Windows and LDAP users groups. The StorageDirector grants access to
the UNIX shell command through SSL/TLS.

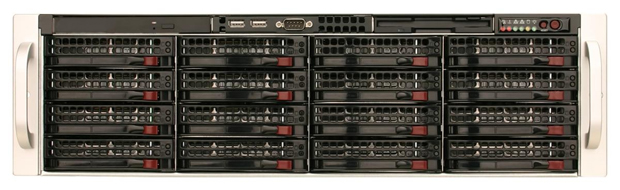

CHASSIS:
- Standard 3U Form Factor
POWER SUPPLY:
- Redundant 650W Hot Swappable Power Supply
FANS:
- Six Internal Blower Fans
- Two Rear Exhaust Fans
- Power Supply Fan
CHIPSET:
- Intel 5000P Chipset Motherboard
- 1333MHz Front Side Bus
MEMORY:
- 2GB DDRII-667 Fully Buffered Memory (2x1024MB)
PROCESSOR:
- Dual Intel Dual Core Xeon 5130 2.0Ghz (4MB Cache) Processors
I/O PORTS:
- One Serial Port
- One Parallel Port
- Two PS/2 Connectors (Keyboard and Mouse)
- Two USB 2.0 Ports (Located in Rear)
DRIVE BAYS:
- Sixteen Hot-Swap Serial ATA Drive Bays
- Optional CD-RW and DVD+/-RW Drives
STORAGE ARRAY:
- 11.25TB Available Redundant (12TB Raw) Hot Swappable Storage (16x750GB SATA)
MANAGEMENT:
- Optional PogoRemote IPMI 2.0 for Out of Band Management
RAID CONTROLLER:
- AMCC 3Ware 9650SE-16ML 16 Port SATAII RAID Card with Battery Backup
HARD DISKS:
- 7200RPM Serial ATA or 15k RPM SAS Hard Drives (Storage Array)
- 2.5” SATA Hard Drive (OS Drive)
VIDEO:
- Onboard ATI ES1000 16MB Video Adapter
NETWORK:
- Dual Onboard nVidia 10/100/1000 Ethernet
DIMENSIONS:
- Height: 5.25”
- Width: 19”
- Depth: 27.5”
WEIGHT:
- 80 lbs (Default Configuration) |
