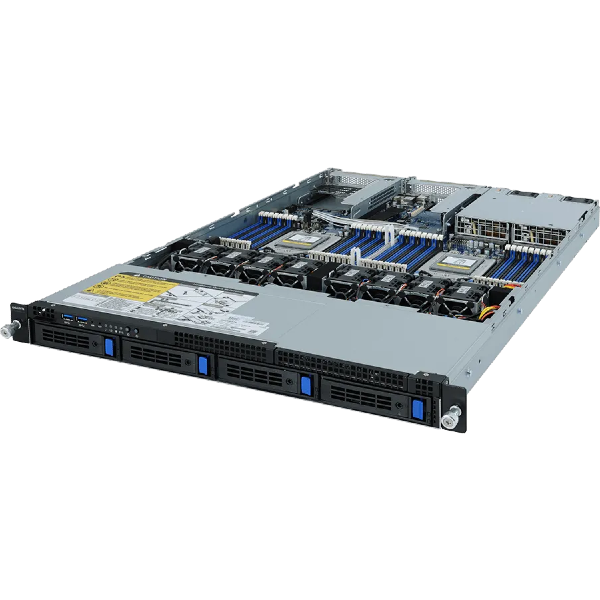

Atlas 135-4D

  • Add to Cart

    Obtain a formal quote for this configuration by clicking the “REQUEST A QUOTE” button. Then, enter your email address and provide any pertinent configuration notes. You will then receive an email with a link to a pdf of the quote. The Pogo Linux sales engineering team will review your configuration and respond via email with any comments or suggestions.

  • View Specs

    Obtain a formal quote for this configuration by clicking the “REQUEST A QUOTE” button. Then, enter your email address and provide any pertinent configuration notes. You will then receive an email with a link to a pdf of the quote. The Pogo Linux sales engineering team will review your configuration and respond via email with any comments or suggestions.

Generate PDF review my config

$5,256.95

  • Dual AMD EPYC™ 7003 Series Processor
  • Up to 4096GB DDR4 ECC Registered Memory
  • 4 x 3.5" Hot-swap Drive Trays
  • Flexible Network Options
  • Integrated IPMI 2.0 + KVM with Dedicated LAN
  • 1200W Redundant Platinum Power Supply
Atlas 135-4D
Processor and Memory
CPU
Memory
OS Drives
M.2 OS Drive
Hard Disk Drives
SATA 3.5" Hard Drives
Networking Adapter - OCP
Networking Adapter - OCP
PCIe Expansion
PCIe Expansion Slots 1-2
Trusted Platform Module

Gigabyte CTM010 - Trusted Platform Module - TPM 2.0

Operating System
Operating System
RAID Configuration
RAID Level
Support Options
Warranty and Support

Atlas 135-4D

Atlas 135-4D
Processor Support
CPU
Dual AMD EPYC 7003-Series Processors
Socket
SP3
Memory
Dimm Slots
32
Type
DDR4 3200MHz ECC Registered
Capacity
4096GB
OnBoard Devices
Chipset
System on Chip
IPMI
Aspeed AST2500 remote management controller
Network Controller
I350-AM2
Input/Output
LAN
2 RJ45 LAN Ports
IPMI
1 RJ45 IPMI Port
USB
Rear I/O 2 x USB 3.0 Front I/O 2 x USB 3.0
VGA
1 VGA
Chassis
Form Factor
1U
Drive Bays
Hot Swap
4x 3.5" Hot-swap Drive Bays
OS
1 M.2 NVMe
Power
Spec
2 x 1200W redundant PSUs 80 PLUS Platinum
