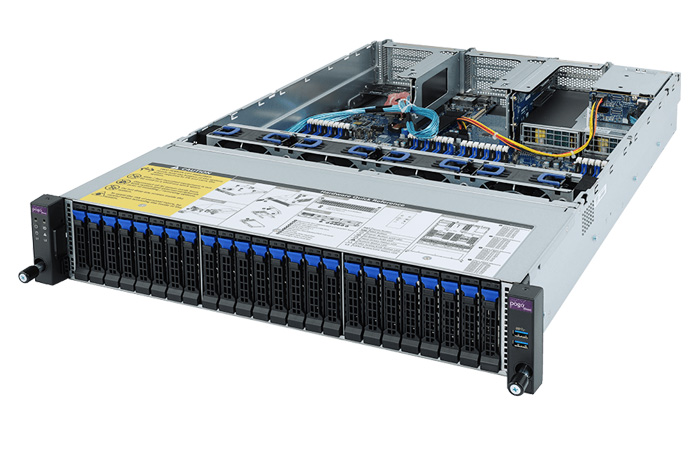

Atlas 225-24

  • Add to Cart

    Obtain a formal quote for this configuration by clicking the “REQUEST A QUOTE” button. Then, enter your email address and provide any pertinent configuration notes. You will then receive an email with a link to a pdf of the quote. The Pogo Linux sales engineering team will review your configuration and respond via email with any comments or suggestions.

  • View Specs

    Obtain a formal quote for this configuration by clicking the “REQUEST A QUOTE” button. Then, enter your email address and provide any pertinent configuration notes. You will then receive an email with a link to a pdf of the quote. The Pogo Linux sales engineering team will review your configuration and respond via email with any comments or suggestions.

Generate PDF review my config

$7,339.02

  • Dual AMD EPYC 7003 Series Processors
  • Up to 4096GB of DDR4 ECC Reg Memory
  • 24x 2.5" Hot Swap Drive Bays
  • Dual Port Gigabit Ethernet
  • 1600W Platinum Level Redundant Power Supply
Atlas 225-24
Processor and Memory
CPU
Memory
OS Drives
Rear Mounted OS Disks
M.2 Drives
M.2 NVMe Storage
Hard Disk Drives
SSD 1-8 2.5" SATA/SAS
SSD 9-16 2.5" SATA/SAS
SSD 17-24 2.5" SATA/SAS
Networking Adapter - OCP
Optional OCP Networking Card
Raid/HBA Selection
Raid/HBA Card
PCI Express Expansion Cards
PCI-E Expansion 1
PCI-E Expansion 2
PCI-E Expansion 3
PCI-E Expansion 4
PCI-E Expansion 5
PCI-E Expansion 6
PCI-E Expansion 7
Trusted Platform Module

Gigabyte CTM010 - Trusted Platform Module - TPM 2.0   $29.27

Operating Systems
Operating System
Support Options
Warranty and Support

Atlas 225-24

Atlas 225-24
Processor Support
CPU
Dual AMD EPYC 7003-Series Processors
Socket
SP3
Memory
Dimm Slots
32
Type
DDR4 3200MHz ECC Registered
Capacity
4096GB
OnBoard Devices
Chipset
System on Chip
IPMI
Aspeed AST2500 remote management controller
Network Controller
Intel I350-AM2
Input/Output
LAN
2 RJ45 LAN Ports
IPMI
1 RJ45 IPMI Port
USB
2x USB 3.0 on back panel, 2 USB 3.0 on front panel
VGA
1 VGA
Chassis
Form Factor
2U
Depth
982 mm
Height
268 mm
Width
588 mm
Average Weight
65 Lbs.
Drive Bays
Hot Swap
24x 2.5" Hot-swap Drive Bays
OS
2x 2.5" Rear Hot-swap Drive Bays
Power
Spec
2 1600W redundant PSUs 80 PLUS Platinum
Expansion
PCIe x8 slot (Gen4 x8), Low profile half-length
2
PCIe x16 slot (Gen4 x16), FHHL
2
PCIe x8 slot (Gen4 x8), FHHL
3
