This is a great option for 6 full sized GPU cards, ideal for workloads where you have a lot of jobs running and need more cards to handle the job capacity. Seismic, graphing, physics, and finance. Giving faster results with larger sets of data

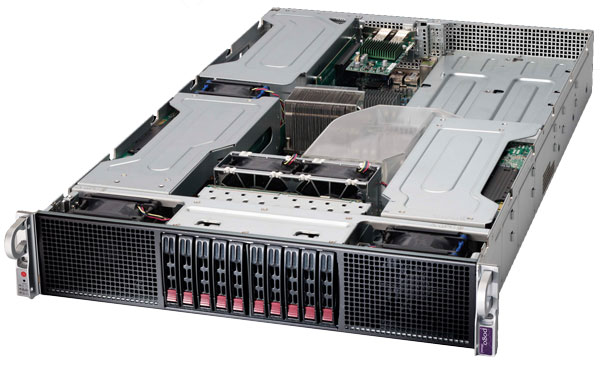

Synapse 2216
Processor Support
CPU
Dual Intel Xeon processors Scalable Series
Socket
Dual Intel Socket P (LGA 3647)
Memory
Dimm Slots
16
Type
DDR4 2933MHz ECC Registered
Capacity
4096GB
OnBoard Devices
Chipset
Intel C621
SATA
2
SAS
2 miniSAS ports
IPMI
ASPEED AST2500
Network Controller
SIOM or AOC NIC
Input/Output
IPMI
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 3.0 ports
VGA
1 VGA port
Chassis
Form Factor
2U Rackmount
Depth
31" (787mm)
Height
3.5" (89mm)
Width
17.2" (437mm)
Average Weight
55 Lbs.
Expansion
PCI-E 1
4 PCI-E 3.0 x16
PCI-E 2
1 PCI-E 3.0 x8
Drive Bays
Hot Swap
8 Hot-swap 2.5" SAS/SATA drive bays
Other
2 Hot-swap 2.5" SAS/SATA/NVMe drive bays
Power
Spec
2000W 1U Redundant Power Supplies
