Synapse 836-10

  • Add to Cart

    Obtain a formal quote for this configuration by clicking the “REQUEST A QUOTE” button. Then, enter your email address and provide any pertinent configuration notes. You will then receive an email with a link to a pdf of the quote. The Pogo Linux sales engineering team will review your configuration and respond via email with any comments or suggestions.

  • View Specs

    Obtain a formal quote for this configuration by clicking the “REQUEST A QUOTE” button. Then, enter your email address and provide any pertinent configuration notes. You will then receive an email with a link to a pdf of the quote. The Pogo Linux sales engineering team will review your configuration and respond via email with any comments or suggestions.

Generate PDF review my config

Call/Email

  • Dual AMD EPYC 9004 Series Processor
  • Up to 6TB DDR5 ECC Registered Memory
  • 24 x 2.5" Hot-swap Drive Trays

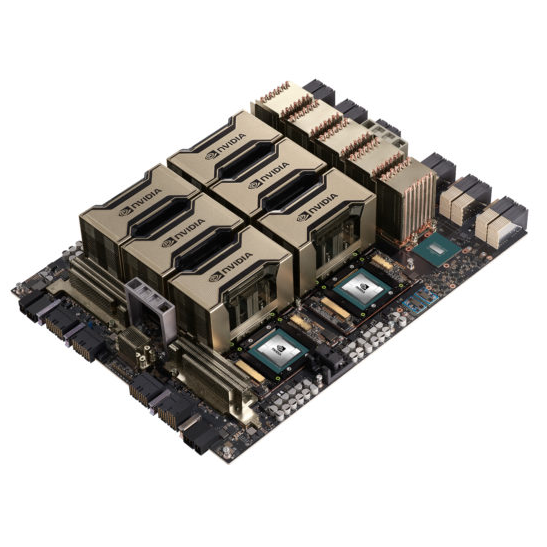

  • NVIDIA HGX H100 - 8x NVIDIA H100 SXM5 GPUs - 640GB HBM3 Memory - 4th Generation NVLink
  • Integrated IPMI 2.0 + KVM with Dedicated LAN
  • 4x 3000W Redundant Titanium Power Supplies
  • Great for AI/Deep Learning & HPC
Synapse 836-10
Processor and Memory
CPU
Memory
OS Drives
M.2 NVMe SSD for Boot
Drive Selection
NVMe/SATA 1-7
NVMe/SATA 8-14
NVMe/SATA 15-20
NVMe 21-24
GPU Accelerator

NVIDIA® HGX™ H100 - 8x NVIDIA® H100 SXM5 GPUs - 640GB HBM3 Memory - 4th Generation NVLink

PCIe Expansion
PCIe 5.0 x16 FHFL Expansion Slot 1
PCIe 5.0 x16 FHFL Expansion Slot 2
PCIe 5.0 x16 LP Expansion Slot 3
PCIe 5.0 x16 LP Expansion Slot 4
PCIe 5.0 x16 LP Expansion Slot 5
PCIe 5.0 x16 LP Expansion Slot 6
PCIe 5.0 x16 LP Expansion Slot 7
PCIe 5.0 x16 LP Expansion Slot 8
PCIe 5.0 x16 LP Expansion Slot 9
PCIe 5.0 x16 LP Expansion Slot 10
Operating System
Operating System
RAID Configuration
RAID Level
Support Options
Warranty and Support

Synapse 836-10

Synapse 836-10
Processor Support
CPU
AMD EPYC™ 9004 Series Processors
Socket
SP5
Memory
Dimm Slots
24
Type
4800MHz ECC DDR5 RDIMM/LRDIMM
Capacity
Up to 6TB: 24x 256 GB DRAM
OnBoard Devices
Chipset
AMD SP5
IPMI
ASPEED AST2600
Network Controller
Via AIOM
Input/Output
LAN
Via AIOM
IPMI
1 Dedicated IPMI LAN port
VGA
1 VGA port(s)
Chassis
Form Factor
8U
Expansion
PCI-E 1
8 PCIe 5.0 x16 LP slot(s)
PCI-E 2
2 PCIe 5.0 x16 FHFL slot(s)
Drive Bays
Hot Swap
14x 2.5" hot-swap NVMe/SATA drive bays (6x 2.5" NVMe hybrid; 4x 2.5" NVMe dedicated)
OS
1 M.2 NVMe
Power
Spec
4x 3000W Redundant Power Supplies, Titanium Level
Input
3000W
System Cooling
Fans
10 heavy duty fans with optimal fan speed control
