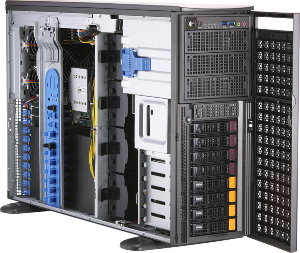

Velocity D60PSC

  • Add to Cart

    Obtain a formal quote for this configuration by clicking the “REQUEST A QUOTE” button. Then, enter your email address and provide any pertinent configuration notes. You will then receive an email with a link to a pdf of the quote. The Pogo Linux sales engineering team will review your configuration and respond via email with any comments or suggestions.

  • View Specs

    Obtain a formal quote for this configuration by clicking the “REQUEST A QUOTE” button. Then, enter your email address and provide any pertinent configuration notes. You will then receive an email with a link to a pdf of the quote. The Pogo Linux sales engineering team will review your configuration and respond via email with any comments or suggestions.

Generate PDF review my config

$6,670.38

  • Personal Supercomputer in a workstation form-factor
  • Dual 3rd Gen Intel Xeon Scalable Series Processors
  • Up to 4 Double Width GPUs
  • Up to 4TB DDR4 3200Mhz ECC Registered Memory
  • Up to Eight SATA, SAS and NVMe Hard Drives in a RAID
  • Onboard Dual-Port Intel 10GBase-T Adapter
  • 2200 Watt Titanium Level Redundant power supplies
Velocity D60PSC
Processor and Memory
CPU
Memory
M.2 NVMe Drives
M.2 NVME SSD for Boot
Additional M.2 NVME SSD
Hard Disk Drives
SAS/SATA/NVMe HDD 1

More Info

SAS/SATA/NVMe HDD 2

More Info

SAS/SATA/NVMe HDD 3

More Info

SAS/SATA/NVMe HDD 4

More Info

SAS/SATA/NVMe HDD 5 (NVMe requires NVMe Enablement Kit)

More Info

SAS/SATA/NVMe HDD 6 (NVMe requires NVMe Enablement Kit)

More Info

SAS/SATA/NVMe HDD 7 (NVMe requires NVMe Enablement Kit)

More Info

SAS/SATA/NVMe HDD 8 (NVMe requires NVMe Enablement Kit)

More Info

Disk Connectivity
NVMe RAID Option

Intel VROC Key - Premium   $368.75

RAID Controller
D60PSC NVMe Enablement Kit (Drives 1-4)
Video Cards/Accelerators (System has onboard VGA)
GPU Card 1
GPU Card 2
GPU Card 3
GPU Card 4
NVIDIA NVLINK
NVIDIA NVLink Bridge for RTX A-series - 2-Slot Spacing (RTX A5000/A6000)

NVIDIA A SERIES NVLINK 2S   $226.25

PCI Express Expansion
PCI Express Expansion
Optical Devices
Optional Optical Device
Operating System
Operating System
RAID Configuration
RAID Level
Accessories
Trusted Platform Module (TPM)

Trusted Platform Module (TPM) 2.0   $52.50

Peripherals
Keyboard and Mouse
Speakers
LCD Monitors
Support Options
Warranty and Support

Velocity D60PSC

Velocity D60PSC
Processor Support
CPU
3rd Generation Intel Xeon Scalable Processor
Socket
Dual Socket P+ (LGA-4189)
Memory
Dimm Slots
16
Type
DDR4 3200MHz ECC Registered
Capacity
4096GB
OnBoard Devices
Chipset
Intel C621A
SATA
10 x SATA 6Gb/s ports
NVME
2x M.2 Socket
IPMI
ASPEED AST2600 BMC
Network Controller
Dual LAN with Intel X550 10GBase-T Ethernet Controller
Input/Output
LAN
2 RJ45 LAN Ports
IPMI
Intel Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, Watchdog
USB
5 USB 3.0 ports, 4 USB 2.0 ports
VGA
1 VGA D-Sub Connector port
Serial Port
2 COM Port(s) (1 header; 1 rear)
Chassis
Form Factor
Full Tower/4U Rackmount
Depth
29" (737mm)
Height
17.2" (437mm)
Width
7" (178mm)
Average Weight
65 Lbs.
Expansion
PCI-E 1
4x PCIe 4.0 x16 (double-width)
PCI-E 2
2x PCIe 4.0 x16 (single-width)
PCI-E 3
1x PCIe 4.0 x8 LP
Power
Spec
Dual 2200W Titanium level power supplies for high powered configurations
Drive Bays
SATA/SAS Hot Swap
4x 3.5" Hot-swap SAS3/SATA3 HDDs w/ RAID
NVMe Hot Swap
4x 3.5" Hot-swap NVMe U.2 SSDs w/ RAID
