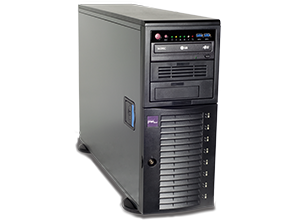

Vorticon 575E

  • Add to Cart

    Obtain a formal quote for this configuration by clicking the “REQUEST A QUOTE” button. Then, enter your email address and provide any pertinent configuration notes. You will then receive an email with a link to a pdf of the quote. The Pogo Linux sales engineering team will review your configuration and respond via email with any comments or suggestions.

  • View Specs

    Obtain a formal quote for this configuration by clicking the “REQUEST A QUOTE” button. Then, enter your email address and provide any pertinent configuration notes. You will then receive an email with a link to a pdf of the quote. The Pogo Linux sales engineering team will review your configuration and respond via email with any comments or suggestions.

Generate PDF review my config

$4,968.82

  • Dual AMD EPYC 7002
  • 8 SAS/SATA Drive Bays
  • 16 DDR4 DIMM Sockets
  • 2TB Memory Maximum
  • Dual 10GBaseT Ethernet
  • 1280W Redundant Power Supply
Vorticon 575E
Processor and Memory
CPU
Memory
Hard Disk Drives
SAS/SATA HDD 1

More Info

SAS/SATA HDD 2

More Info

SAS/SATA HDD 3

More Info

SAS/SATA HDD 4

More Info

SAS/SATA HDD 5

More Info

SAS/SATA HDD 6

More Info

SAS/SATA HDD 7

More Info

SAS/SATA HDD 8

More Info

Graphics Cards
Graphics Card
PCI Express Expansion
RAID Controller
PCI-e 4x Expansion Card 1
PCI-e 8x Expansion Card 1
Optical Devices
Optical Device
Operating System
Operating System
RAID Configuration
RAID Level
Peripherals
Keyboard and Mouse
LCD Monitors
Support Options
Warranty and Support

Vorticon 575E

Vorticon 575E
Processor Support
CPU
Dual AMD EPYC™ 7000-Series Processors
Socket
Socket SP3
Memory
Dimm Slots
16
Type
DDR4 2666MHz ECC Registered
Capacity
2048GB
OnBoard Devices
Chipset
System on Chip (SoC)
SATA
10
NVME
2 NVMe support with optional cables
IPMI
1 Realtek RTL8211E PHY (dedicated IPMI)
Network Controller
2 Intel X550 10GBase-T Ethernet Controllers
Input/Output
LAN
Dual 10G LAN ports (RJ45)
IPMI
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 3.0 ports, 2 USB 2.0 ports
VGA
1 VGA port
Chassis
Form Factor
Full Tower/4U Rackmount
Depth
25.5" (647mm)
Height
17.8" (452mm)
Width
7" (178mm)
Average Weight
65 Lbs.
Expansion
PCI-E 1
2 PCI-E x16 slots
PCI-E 2
3 PCI-E x8 slots
Drive Bays
Hot Swap
8 hot-swap 3.5" Drive Bays
Other
1x M.2 Socket
Power
Spec
1280W Redundant Power Supplies
